Multi-Camera Self-Calibration in Sports Motion Capture: Leveraging Human and Stick Poses

Abstract

Multi-camera systems are widely employed in sports to capture the 3D motion of athletes and equipment, yet calibrating their extrinsic parameters remains costly and labor-intensive. We introduce an efficient, tool-free method for multi-camera extrinsic calibration tailored to sports involving stick-like implements (e.g. golf clubs, bats, hockey sticks).

Our approach jointly exploits two complementary cues from synchronized multi-camera videos: (i) human body keypoints with unknown metric scale and (ii) a rigid stick-like implement of known length. We formulate a three-stage optimization pipeline that refines camera extrinsics, reconstructs human and stick trajectories, and resolves global scale via the stick-length constraint. Our method achieves accurate extrinsic calibration without dedicated calibration tools.

To benchmark this task, we present the first dataset for multi-camera self-calibration in stick-based sports, consisting of synthetic sequences across four sports categories with 3 to 10 cameras. Comprehensive experiments demonstrate that our method delivers SOTA performance, achieving low rotation and translation errors.

Methodology

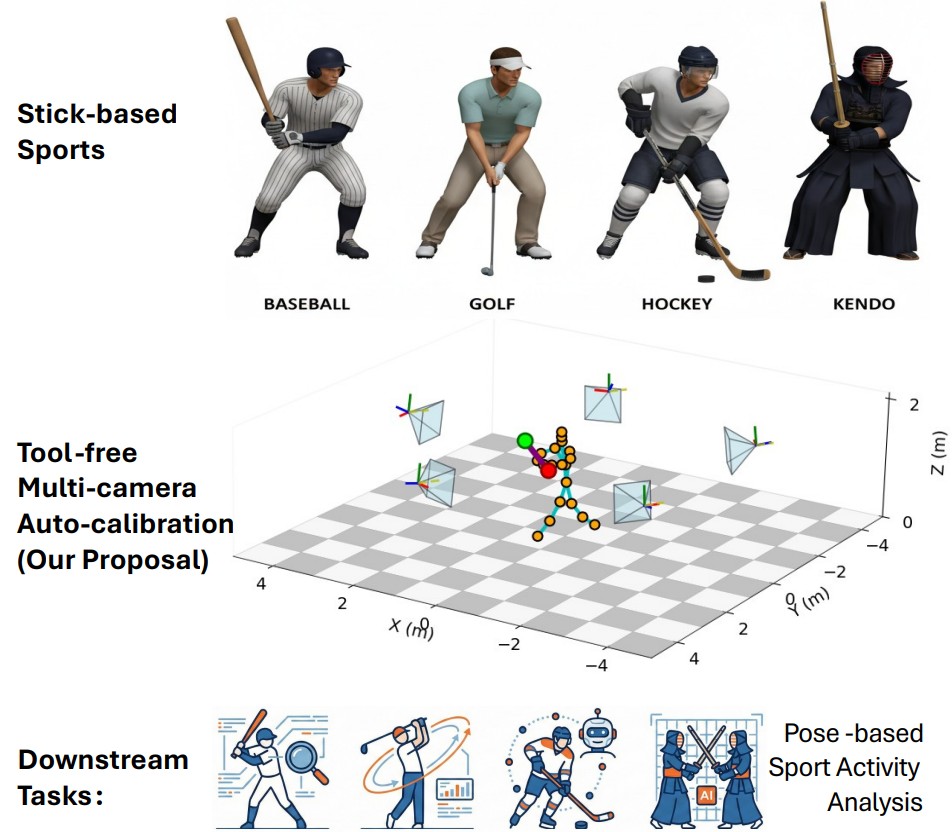

**Illustration of our proposal.** For sports involving stick-like implements (e.g. golf, baseball, hockey, and kendo), we perform a novel tool-free multi-camera extrinsic calibration by leveraging both the stick and the human poses.

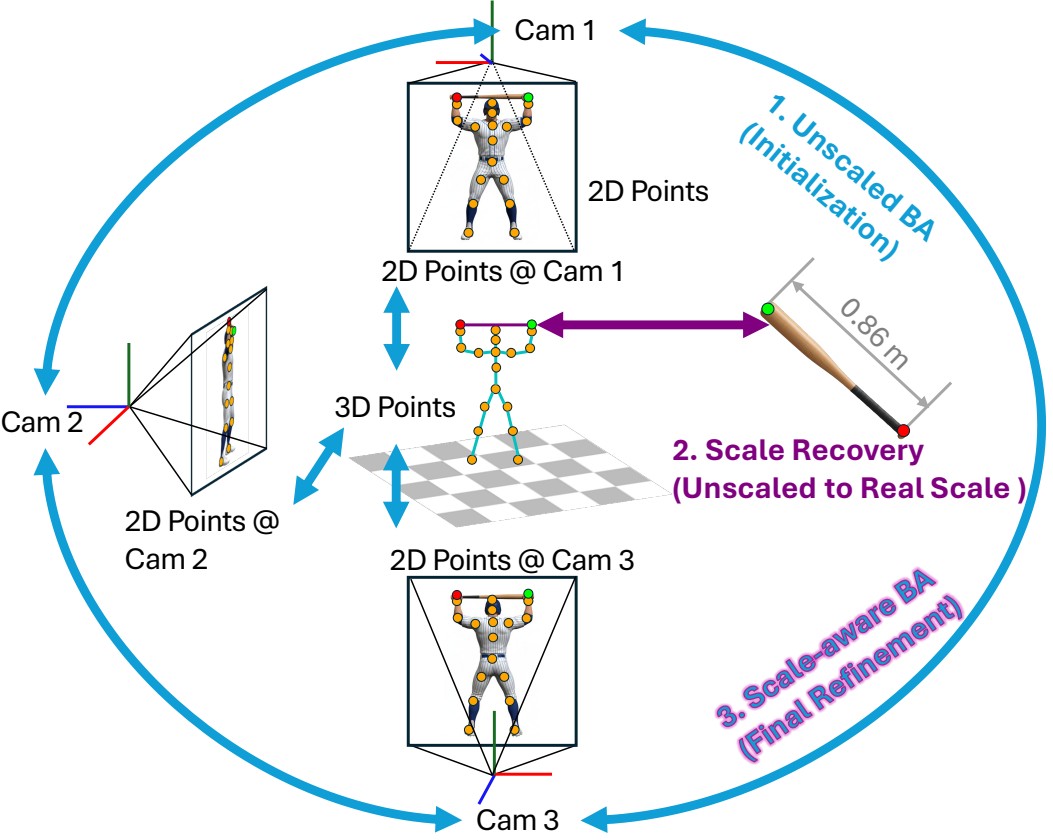

Three-stage optimization framework — **Three-stage optimization.** (1) An initial, unscaled 3D pose is reconstructed from multi-view 2D keypoints via Bundle Adjustment (BA). (2) The real-world scale is recovered using a known measurement, such as the length of the baseball bat (0.86 m). (3) A final, scale-aware BA is performed to refine the metric 3D reconstruction.

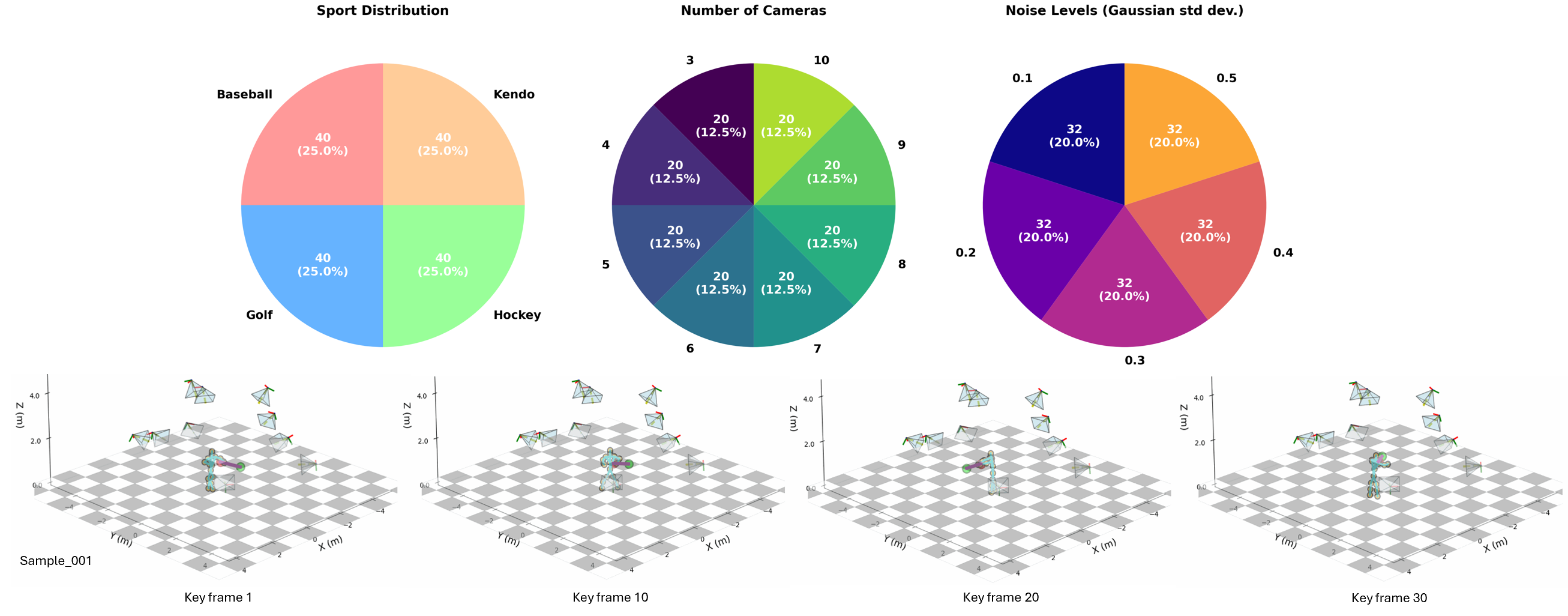

Sports-Stick-Syn Dataset

Quantitative Results

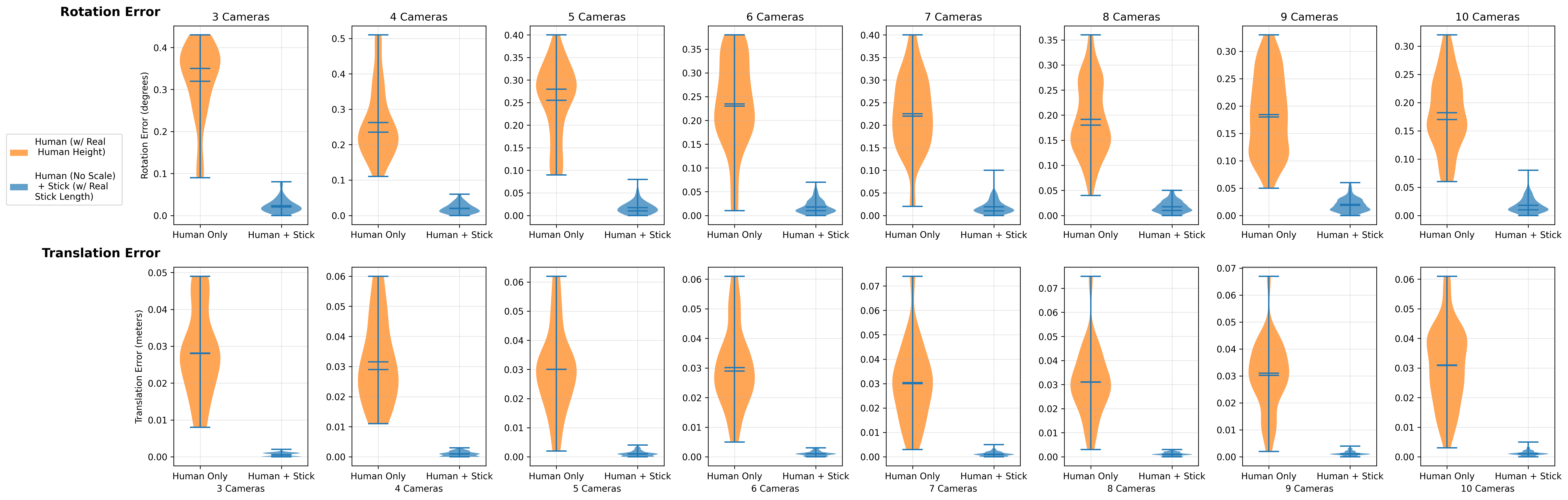

**Per-camera Error Distribution.** The human + stick approach yields lower errors and variance in both rotation and translation compared to human-only setups.

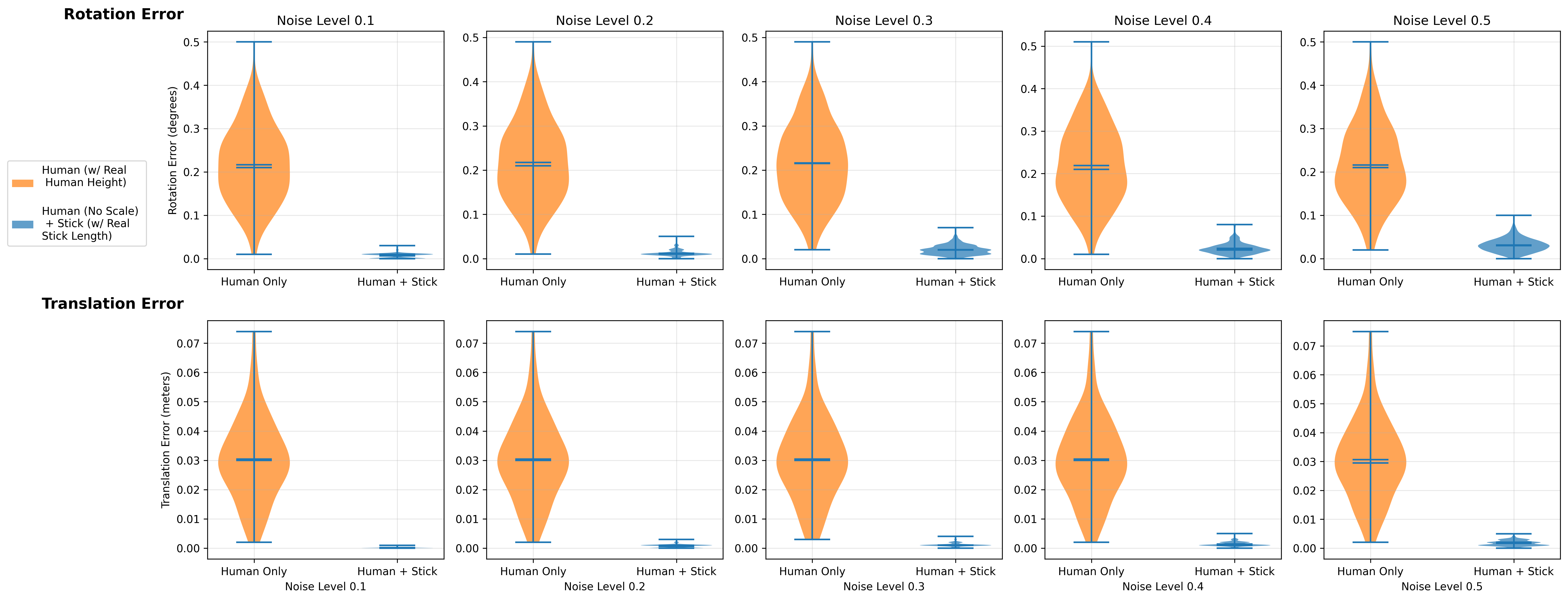

**Per-noise-level Error Distribution.** As noise increases, the human + stick approach continues to perform robustly, maintaining a tight error profile.

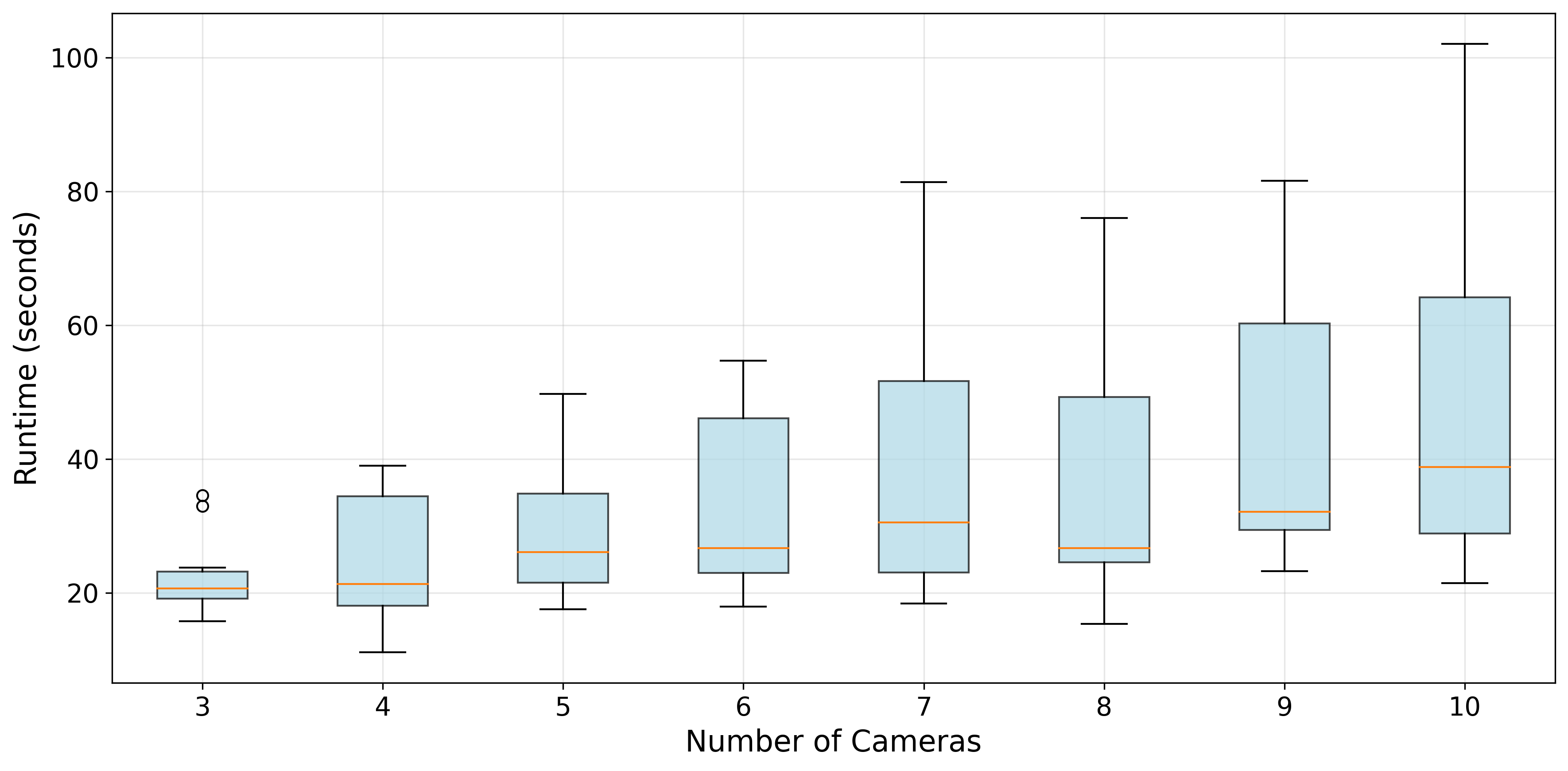

**Runtime distribution.** Execution time scales reasonably well with the number of cameras across all trials.

Downstream Applications in Real Scenes

**Real Scene Evaluation.** We evaluated our method in an uncontrolled outdoor scene using time-synchronized cameras. Real-world factors such as illumination variation, background clutter, and detector noise pose challenges that are largely absent in simulation. Our optimization effectively recovers the relative camera extrinsics and reconstructs a coherent, metric-scale 3D human-club motion sequence from uncalibrated inputs.

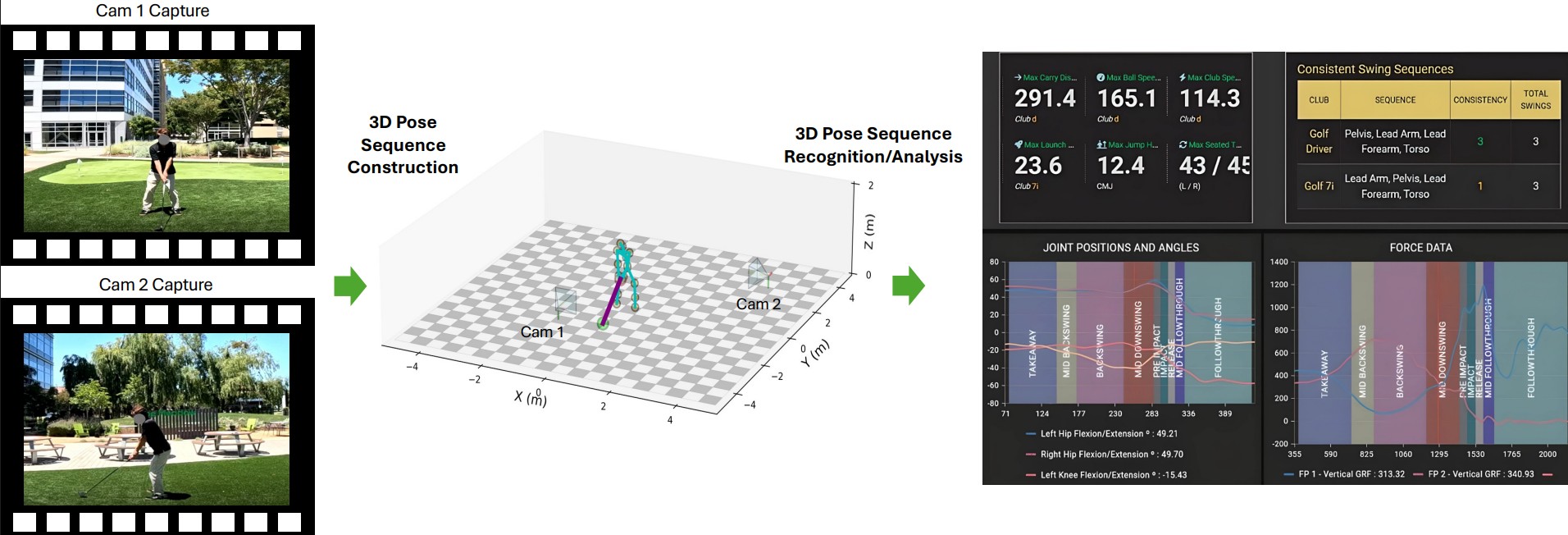

**Enabling precise 3D sports gesture analysis via tool-free self-calibration.** Our method utilizes rigid stick constraints to self-calibrate multi-camera setups (Left & Center), enabling scale-aware 3D pose reconstruction. This supports robust downstream applications in sports analytics (Right), allowing for accurate analysis of sport gestures and movement.
